ID # 67177838

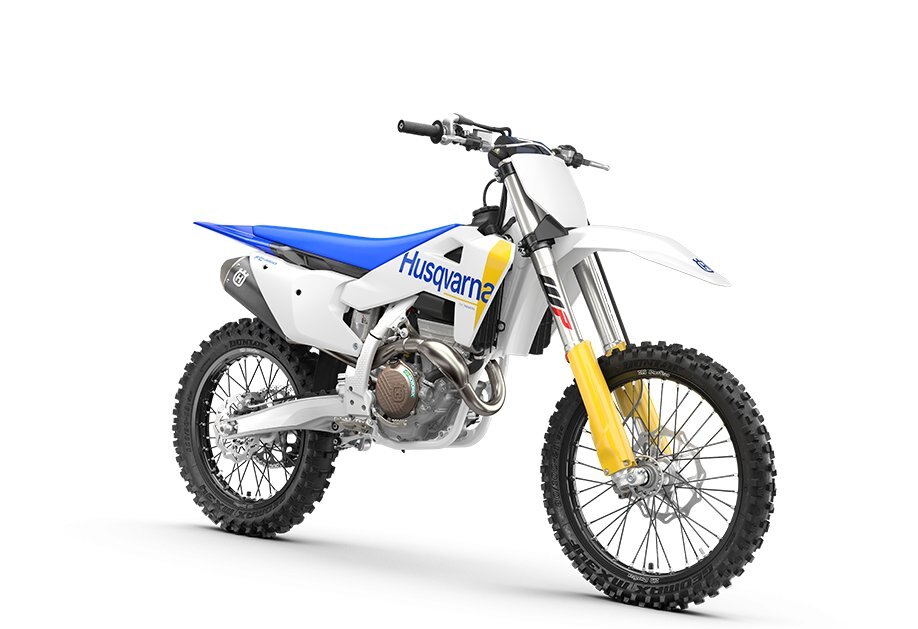

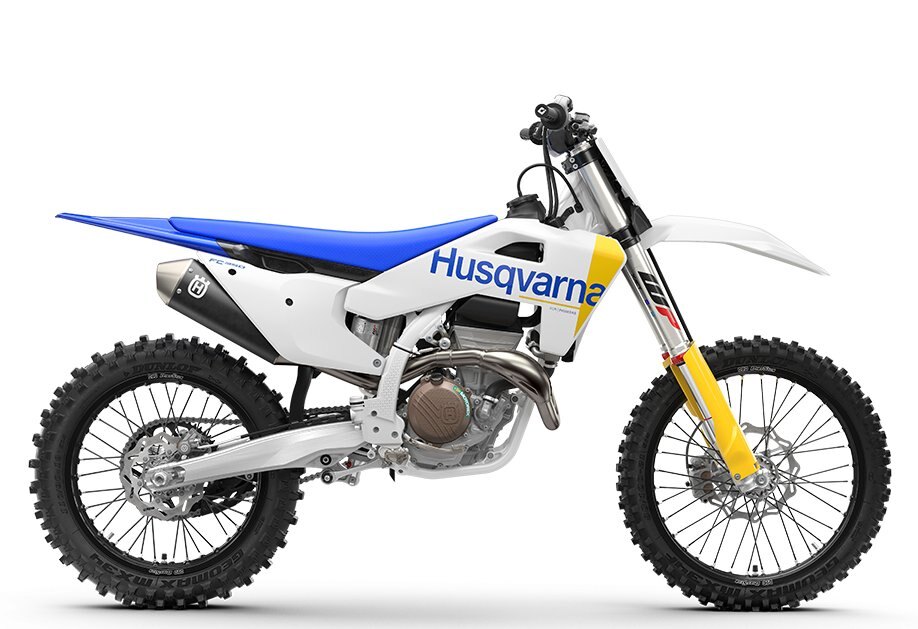

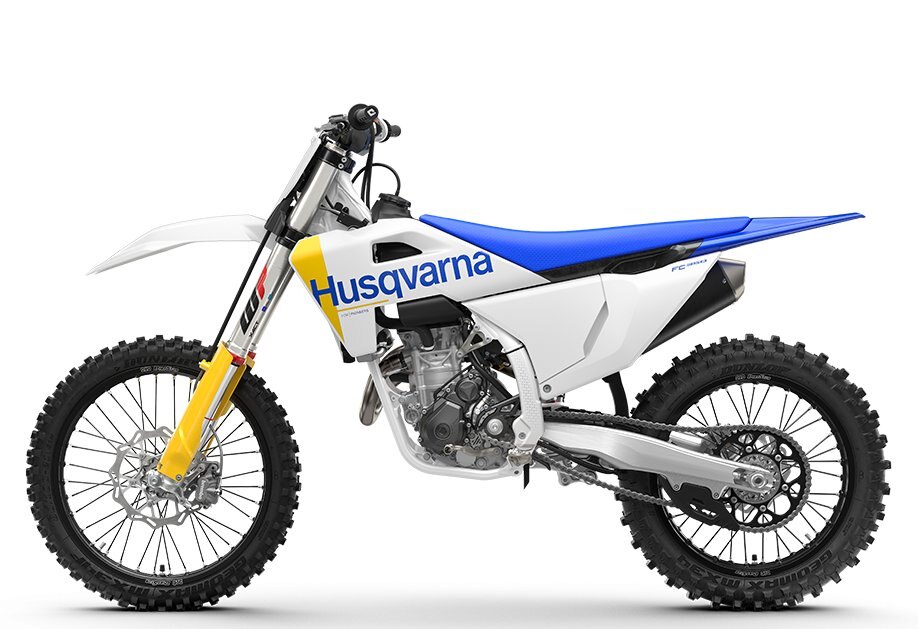

2027 Husqvarna FC 350

Name: 2027 Husqvarna FC 350
Brand: Husqvarna
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

The FC 350 combines the agility of the FC 250 with a power-to-weight ratio to rival the FC 450. The FC 350 remains one of the most capable motocross bikes on the market. Ergonomic bodywork offers free and easy movement, with updated graphics completing the revisions for 2027.

Specifications

Model

Category Name

Motorcycles

Year

2027

Sale Type

New

Manufacturer

Husqvarna

faster and wiser

Engine

The FC 350 engine is designed to deliver maximum performance with all major engine components and shaft arrangements positioned to enhance overall handling. Weighing just 59.9 lb (27.2 kg), the 350 cc 4-stroke engine centralizes mass and aids the anti-squat behavior of the whole chassis. Added service markers on the engine (▲) clearly show where to use washers, making maintenance and service easier than in the past.

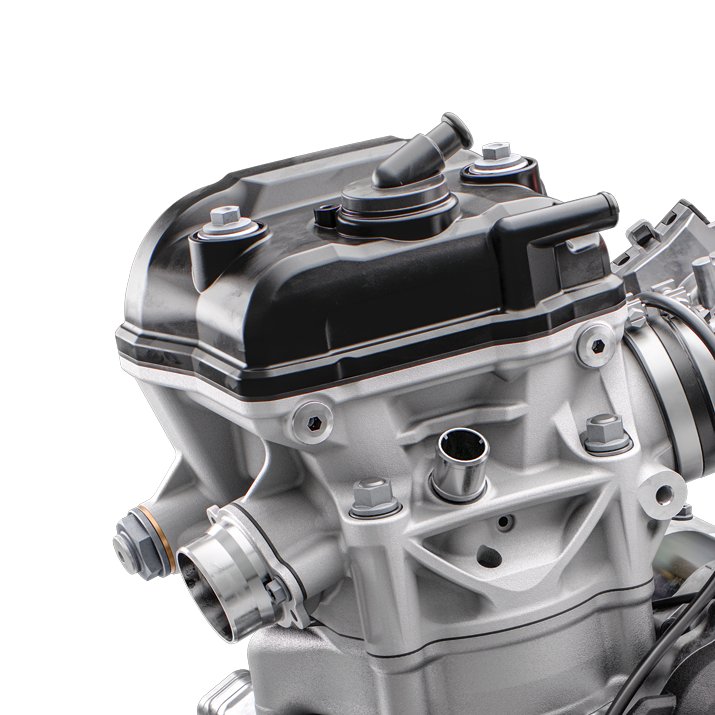

Cylinder head

2027 Husqvarna FC 350

The DOHC cylinder head offers improved durability and serviceability, with diamond-like carbon (DLC) coated finger followers that guarantee minimal friction and optimal performance. These actuate large titanium valves, 36.3 mm for the intake and 29.1 mm for the exhaust, which optimise gas flow for strong, usable power across the rev-range, all the way up to the 13,400 rpm limit. Valve timings work in perfect harmony with the camshaft, which features a bearing bridge design for stiffness and easy serviceability.

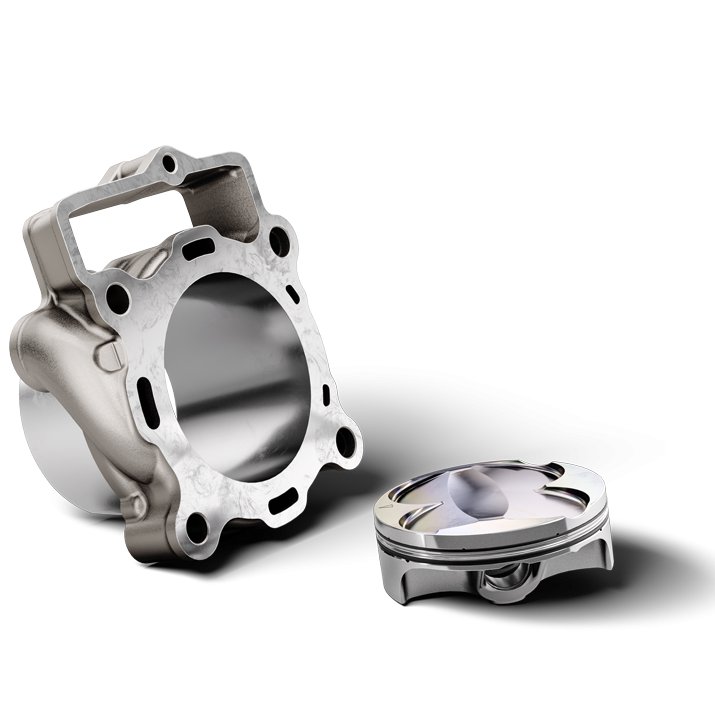

Cylinder and piston

A large 88 mm bore and 57.5 mm stroke cylinder is professionally engineered from high-strength aluminium for maximum reliability, and houses the high performance forged bridged-box-type piston from CP. The compression ratio is 14.6:1 for exceptional torque and peak power. Engine response is strong thanks to optimised valve guides and valve shaft diameters that are precisely engineered using computational fluid dynamics (CFD).

Crankshaft

At the centre of the high-output, high-revving FC 350 engine is a crankshaft featuring a plain big end bearing rotating on two force-fitted bearing shells. Ensuring maximum reliability and durability, the crankshaft offers long service intervals of 90 hours.

Crankcases

Designed for optimised mass centralisation, the FC 350 crankcases house all internal components in the perfect position to achieve the ideal centre of gravity. Manufactured using a high-pressure die cast production process, the result is a thin, exceptionally strong wall thickness at the lowest possible weight.

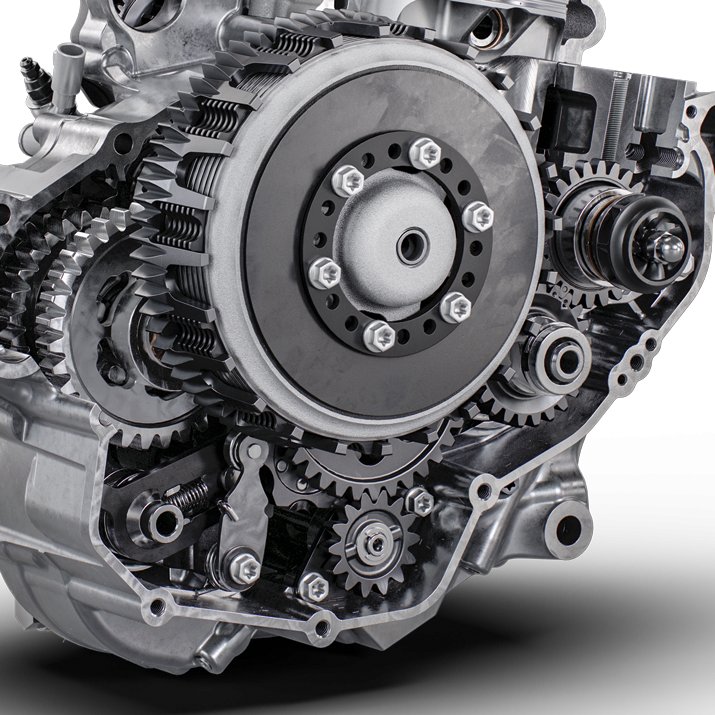

DDS clutch

The FC 350 features a durable diaphragm steel (DS) clutch. Engineered from a single piece of CNC-machined steel, the clutch basket uses thin steel liners, which contribute to the compact design of the engine.

Gearbox

Produced by Pankl Racing Systems, the 5-speed gearbox is designed to be extremely light and durable while featuring optimised and proven motocross-specific gear ratios (24:72). A redesign of the shift shaft reduces the operating forces required for gear changes. Integrated into the shift drum, a new Quickshift sensor can be activated by pressing the QS marked button on the map select switch to further aid seamless upshifting.

ride easier

Lightweight frame

For 2027, the frame is finished with a premium white powder coating with frame protectors offering superior protection, durability, and grip in any condition.

Polyamide-reinforced aluminium subframe

Made from 60% polyamide and 40% aluminium, the new two-piece subframe for 2023 ensures exceptional strength and durability at an overall weight of just 3.9 lb (1.8 kg). The lower subframe spars and frame mounts are manufactured from cast aluminium for significantly improved reliability. The upper section of the subframe is made from injection-moulded polyamide to enable specific flex characteristics and ensure a lightweight construction.

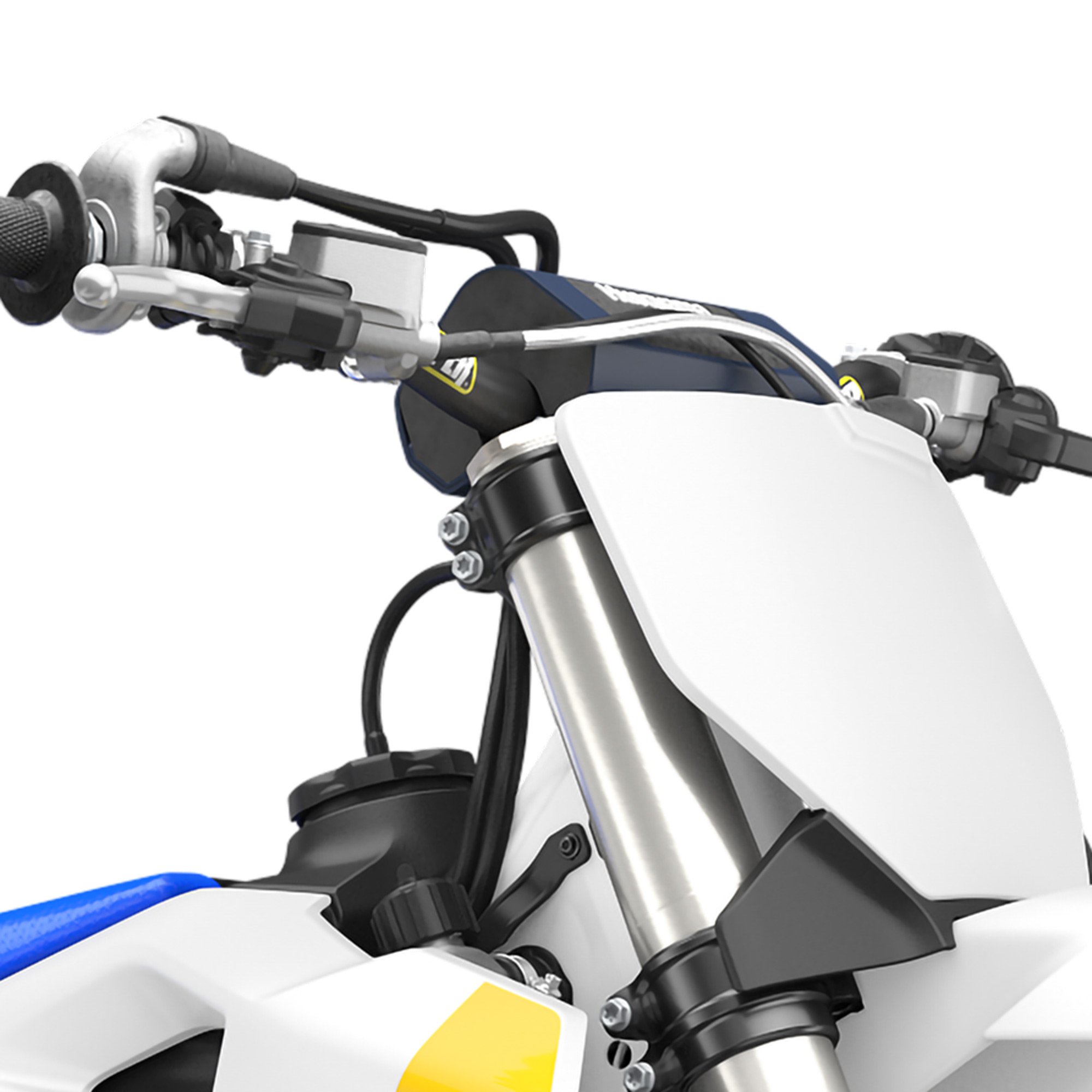

CNC machined triple clamps

Working in unison with the frame design and suspension set-up, the CNC-machined triple clamps ensure precisely calculated geometry for assured stability. Handlebar flex can be customised with the handlebar clamp, which offers two mounting options - rubber-damped for less vibration, or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling.

WP XACT front suspension

Rigorously tested by the WP research and development department, the 48 mm WP XACT closed cartridge spring forks fitted to the FC 450 provide exceptional comfort. Inside the forks, mid-valve pistons optimise oil flow and prevent foaming for consistent and predictable damping at all times. A hydrostop, active in the final 40 mm of travel, reduces the impact of harsh and high-speed landings to maintain forward momentum. Both compression and rebound settings can be quickly adjusted by hand using the easily accessible clickers located on top of each fork leg.

Swingarm

The swingarm is manufactured using a die-cast production process and designed with a calculated level of rigidity. To further complement and optimise the flex characteristics of the chassis, a 22 mm rear wheel axle is utilised. A durable chain slider is neatly integrated into the swingarm, ensuring uninterrupted forward momentum through deeply rutted corners.

effortless ergonomics

Functional bodywork

The ergonomic bodywork was designed to ensure that riders can perform at their best throughout every race. This was achieved through extensive testing, with the smooth contact points in the rider triangle allowing racers to grip the machine tightly with their legs, reducing fatigue. The radiator shrouds, featuring in-mold graphics, contribute to the progressive appearance of the machine, while a tall, wide seat offers unrestricted movement. A high-grip seat cover also helps keep riders securely in place under hard acceleration.

Airbox

A strong, one-piece airbox optimizes air intake by reducing deformation. This design provides an unrestricted flow of air for maximum power, without compromising filter protection. The Twin Air filter can be easily inspected without tools by simply removing the left side panel.

Hydraulic clutch

The high-performance Brembo hydraulic clutch system guarantees even wear, near maintenance-free operation, and perfect action in every condition. With this hydraulic system, free play is constantly compensated so that the pressure point and function of the clutch remain identical in cold or hot conditions, as well as over time. Countless hours of race-focused testing have proven the exceptional reliability of the high-quality, Italian-made Brembo hydraulic systems.

Hydraulic brakes

Class-leading Brembo brake calipers, made from single pieces of aluminum for strength, are fitted front and rear to ensure high braking performance. Together with 260 mm front and 220 mm rear discs, both designed to prevent mud build-up, effective stopping power in all conditions is assured. The strong rear brake pedal is highly durable, and less susceptible to damage when riding through deep ruts.

ProTaper handlebar

Developed between Husqvarna Motorcycles and leading handlebar manufacturer, ProTaper, the exclusive bend offers superior comfort, class-leading strength, and fatigue resistance at the lowest possible weight.

ODI grips

ODI lock-on grips feature an innovative, integrated throttle mechanism and are installed without using glue. The throttle assembly offers easy free-play adjustment with the option to fit alternative cams for a personalized throttle action.

Footrests

The CFD-designed footrests are extra wide to ensure better control of the machine while at the same time are less susceptible to catching on deep ruts, take-offs when scrubbing, and trackside barriers. This is achieved by a narrower mounting design in the frame layout, which also helps reduce overall weight.

master your art

Wheels and tyres

CNC-machined hubs, strong spokes, and high-strength, black-anodized alloy rims by D.I.D are used to assemble the wheels. They are complete with the latest Dunlop MX34 tires, with the front ensuring precise cornering, while the rear provides excellent traction across varied terrain.

Exhaust system

The header pipe on the TC 350 is designed using innovative 3D modelling. The result is a perfect shape designed to deliver optimum performance across the rev-range while also being very compact to ensure sufficient clearance through deep ruts.

Fuel tank

The 1.9-gallon (7.2-liter) fuel tank integrates neatly within the ergonomic bodywork and features a strong rubber cushion beneath it to protect the frame from wear. For maximum durability, the external fuel line is specifically routed to make it less exposed and susceptible to damage. Additionally, the protective cap for the fuel filter prevents dirt and water from entering the system and shields it from impact damage.

Cooling system

Manufactured from high-strength aluminum, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air through them in the most effective way. A large center tube through the frame reduces pressure at this point in the system for a consistent coolant flow, while an internal thermostat further enhances reliability. A new threaded radiator cap allows for easy inspection of the coolant level before each ride.

technologically advanced

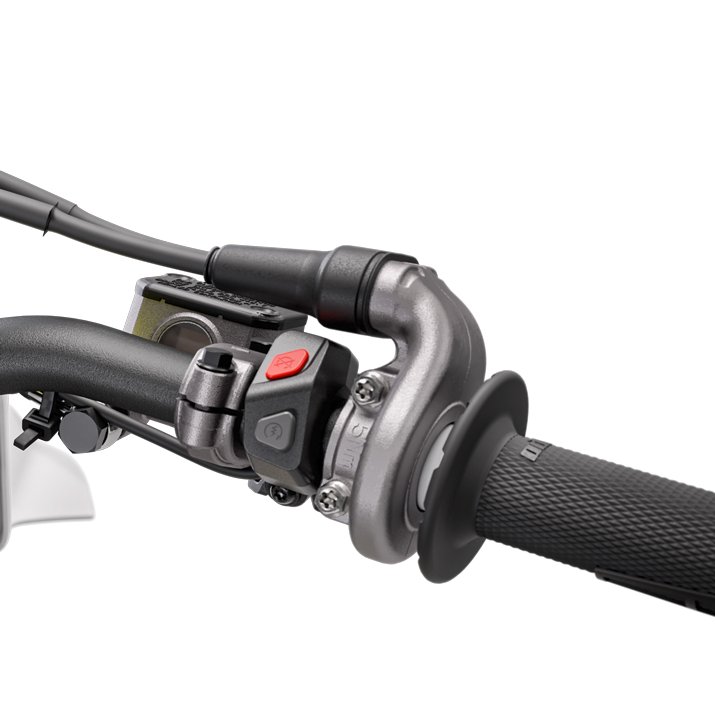

Map select switch

The intuitive handlebar-mounted Map Select Switch allows riders to activate Launch and Traction Control, enable the Quickshifter, and allows riders to toggle between two engine maps. The easy-to-operate Map Select Switch allows riders to quickly alter and set up the engine characteristics on a race by race basis dependent on track conditions and rider preference.

Quickshift

The new Quickshift function can be activated or deactivated via the map select switch. The function works only when upshifting, interrupting the ignition for a fraction of a second. This allows upshifting while the throttle is fully open without the use of the clutch. A sensor on the shift drum registers the force from the shift lever, sends the signal to the ECU and the ignition timing is interrupted. To prevent unintended shifts and false neutrals, the function is only active from second gear upwards.

Traction Control

Traction Control on the FC 350 is engaged by pressing the button marked 'TC' on the Map Select Switch and functions by analysing throttle input from the rider and the rate at which engine RPM increases. If the RPM increases too quickly, the engine management system (EMS) registers a loss of grip and reduces the amount of power to the rear wheel to ensure maximum traction. This is a distinct advantage in wet or muddy conditions.

Launch Control

With the engine at idle, launch control is engaged by pressing the traction control and Quickshift buttons simultaneously. Both symbols will start flashing to indicate the launch control is active. This function limits the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Once a gear change is made, the launch control will deactivate automatically. Additionally, the Quickshift function is deactivated while launch control mode is engaged.

Mapping

For personalised power delivery, the FC 350 has two built-in engine maps as standard. Map 1 (white) offers linear, predictable power, while Map 2 (green) is more aggressive for a sharper throttle response and more explosive power output.

EMS

The new Engine Management System (EMS) is designed to be smaller and lighter while being faster at processing data. It incorporates a new rollover sensor (ROS) which cuts the ignition and shuts off the engine for safety in the event of a severe crash, adding another level of security to the Husqvarna Motorcycles' new generation motocross line-up.

Hour meter

A new hour meter comes with an integrated fuel level indicator, which is visible on the FI status LED, indicating to the rider when the fuel level is becoming low.

Start/stop switch

The combined start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.

Electric start

As with all 4-strokes in the Husqvarna motocross range, the FC 350 starts with the ease of pressing a button thanks to electric start. A lightweight Li-Ion 2.0 Ah battery is fitted, giving the convenience of electric starting while keeping overall weight to a minimum.

engine technical details

EMS

Keihin EMS

BORE

88 mm

CLUTCH

Wet multi-disc DS clutch, Brembo hydraulics

DESIGN

1-cylinder, 4-stroke engine

STROKE

57.5 mm

STARTER
